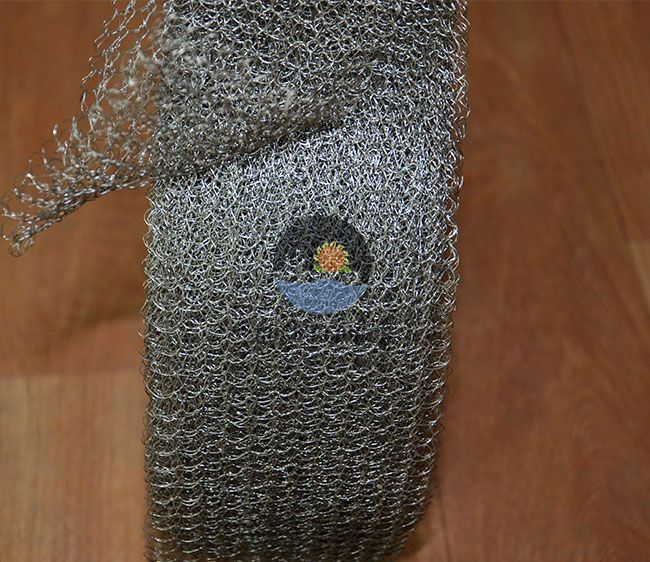

GF 003 Filter Knitted Wire Mesh

ce certification 250 micron stainless steel mesh

Name: Filter knitted wire mesh,gas liquid wire mesh

Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L, galvanized wire, redrawing wire, brass wire, copper wire,  titanium wire, alloy wire, nickel wire,fiberglass wire, nylon wire, PE wire, Nichrome wire.

Wire diameter: 0.08 ~ 0.55mm flat wire or round wire.

Hole size:  4mm×3mm  5mm×6mm  2mmx4mm, 4mmx5mm etc.

Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.






down load to pdf

Details

Tags

Filter knitted wire mesh,also named Gas liquid filter, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.

Features:

  High strength and overall rigidity

· Good air permeability

· Excellent filtering accuracy

· Good filter resistance, mechanical strength, abrasion resistance, heat resistance and cold resistance

· Easy to clean, simple assembly, long replacement cycle.

· Special sizes can be customized.

Application:

1. Make a wire mesh demister filter mat.

2. The filter screen of gas-liquid separation, gas-water separation, oil-water separation and
other devices.

3. Various filter elements on engines of cars and tractors. Sealing, shock-absorbing (shock-absorbing), noise-absorbing and exhaust purification components in auto parts.

4. Electromagnetic interference shielding device for electronic and electrical products


Weave



  • Plain dutch weave

    Plain dutch weave

  • Twilled dutch weave

    Twilled dutch weave

  • Reverse dutch waeve 1

    Reverse dutch waeve 1

  • Reverse dutch weave 2

    Reverse dutch weave 2

  • Five-heddle weave

    Five-heddle weave

Production Process



  • Material Production

    Material Production

  • Diameter Inspect

    Diameter Inspect

  • Tension Test

    Tension Test

  • Material Check

    Material Check

  • Material Check

    Material Check

  • Trimming Edge

    Trimming Edge

  • Length and Width Inspect

    Length and Width Inspect

  • Hole Size Test

    Hole Size Test

  • Mesh Inspect

    Mesh Inspect

  • Weaving

    Weaving

Detection



  • Intension Test

    Intension Test

  • Diameter Inspect

    Diameter Inspect

  • Thickness Inspect

    Thickness Inspect

  • Role size Inspect

    Role size Inspect

  • Mesh Test

    Mesh Test

  • Length and Width Check

    Length and Width Check

  • Trimming Edge

    Trimming Edge

  • Mesh Inspect

    Mesh Inspect

Packaging & Shipping



With the most perfect way to protect your cargo security

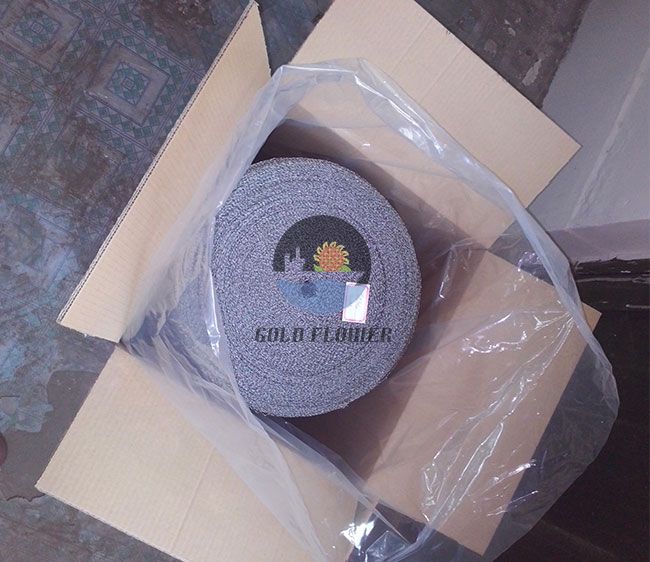

  • 1 Cardboard Tube

    Cardboard Tube

  • 2 Thick Paper Board

    Thick Paper Board

  • 3 Thick Plastic Cloth

    Thick Plastic Cloth

  • 4 Perfect Wooden Case

    Perfect Wooden Case

  • 5 Thick Plastic Bubble Film

    Thick Plastic Bubble Film

  • 6 Excellent Cover

    Excellent Cover

  • 7 Steel Strap Fix

    Steel Strap Fix

  • 8 Package Check

    Package Check

  • 9 Container Transport

    Container Transport
